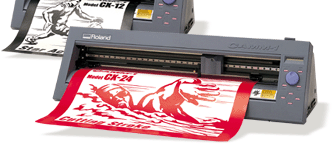

Models CX-12 / CX-24

CAMM-1 Desktop Signmakers

New features of CX-12, CX-24

The CX-12/24 incorporates several new features to simplify operation even further. The dark gray, one-piece front-panel includes a new JOG dial that eliminates dipswitches. Now you can select the rotate, speed, downforce and offset control using the JOG dial and view the input on the new front-panel LED display above the JOG dial. The control panel features reliable, long-lasting push buttons, replacing the membrane switches of earlier models. And the material-loading lever is relocated closer to the control panel, making it easier to move and align the pinch roller wheels.

Easier than ever to use with cutting-edge CAMM-1 PRO technology.

The CX-12/24 is exceptionally easy to use and incorporates advanced features previously available only on Roland’s PRO series vinyl cutters. These include:

• Variable cutting speeds from 1 cm/sec to 40 cm/sec
• Three custom offset increments of 0.175, 0.25 and 0.50 mm
• Eight custom user pre-set settings to store for later use
• Three origin point settings, adding material front edge sensing
• Advanced curve-smoothing function to cut circles and curves with high precision and speed

The CX-12/24 delivers an advanced curve-smoothing function resulting in 10% faster throughput over earlier models. A test-cut function allows you to check the machine’s downforce before actually cutting. With the optional water-based pen, you can even check how finished jobs will turn out before cutting vinyl. Blade offset values can be adjusted for optimum results for a wide range of vinyl and specialty substrates including sandblast, ensuring that corners and edges are cut perfectly on even the smallest letters and graphics.

 Although the CX-12/24 takes up little counter space, it’s compatible with industry standard vinyl widths. CX-12/24 compatible materials include vinyl, paint mask, reflective vinyls, sandblast and even environmentally safe vinyl chloride-free media . . . giving you a wide variety of creative options for every signmaking job. And the CX-12/24 is compatible with all professional signmaking software.

Other improvements:

• One piece front panel
• JOG dial eliminates dipswitches
• Easy-to-read 16 character LED display
• Push button replace membrane switches
• Relocated material load lever
• Larger, single-action pinch roller assembly
• Cutter knife groove on front apron for easier manual cutting

• Replot function (800 Kb)
• Windows® 95/98/2000/NT drivers included
• Test-cut function
• 1 MB data buffer
• Compatible with a wide variety of media
• Compatible with all professional signmaking software

CAMM-1 Series
